Header Extension

Unipro

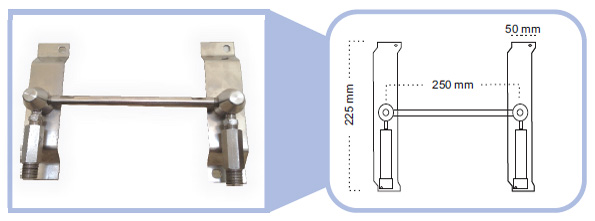

Manifold Systems are most important components which connects cylinders, Non return valve, SS Flexible Hose and changeover system/regulator, Diaphragm Valve, to form centralized Systems Available in 150mm, 250mm and 300mm long options.

Features

Stainless Steel Construction.
Modular Design for easy Installation and further extension
NPT fittings.
SS Rigid Bar Stock.
SS Non Return Valve with Micro Filter.
SS Non Return Valve with Micro Filter.
SS Sheet easy mounting on wall/Structural Support for better aesthetics look.

Technical Data:

Hydraulic Tested Pressure : 300 Bar
Maximum Working Pressure : 240 Bar
Temperature range : - 40 C to 60 C
Bar Stock : Single Piece Body
Non Return Valve : Micro Filter 20 Micron
SS Sheet : 14 swg for more strength
Pneumatic Tested Pressure : He Gas at 240 Bar

Components:

Bar Stock : AISI SS 304/316 Gr.
Non Return Valve : SS 304/316 L
Filter : SMSE
SS Sheet : SS 304/316 L
Non Return Valve : 3/8” NPT (F) x 1/2” BSPM
Outlet Adaptor : 1/4” NPTM x 1/2” BSPM
