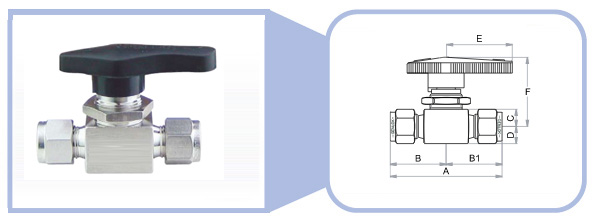

Ultra High Ball Valves

Features

• Maximum operating pressure: 3000 psi (207 bar)- BV15 2500 psi (172 bar)- others.
• Operating temperature:50°F ~ 150°F (10°C ~ 65°C).
• Handle indicates the flow direction.
• End connections: GENLOK, NPT and FSR(please refer to the tables on next page for the specifications).
• Straight pattern is standard, angle pattern is also available
• Panel mounting available.
• Cleaned and degreased for oxygen service according to CGA G-4.1 and ASTM G93 Class C, respectively.
• Every valve is factory tested for leakage at 1000 psi Adjust packing nut when the working pressure is higher than 1000 psi to prevent leakage.
