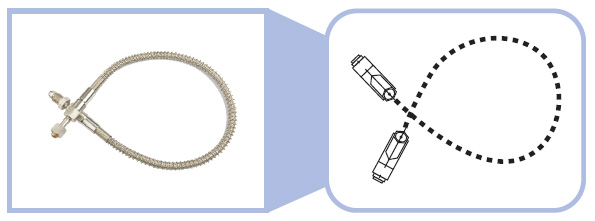

The Stainless steel corrugated hose is especially designed to achieve several objectives in Pipe work design, These include, absorption or vibration, operate under vacuum, handle temperature extremes, suppress rigid pipe noise transmitted, accommodate reciprocating and flexing movement, operate effectively under high pressure

Features

High physical strength combined with light weight.
Good corrosion resistance.
Resistance to fire, moisture, abrasion and penetration.
Compensates for intermittent or constant movement.
A flexible and quick alternative for rigid piping in difficult location.
Compensates for thermal expansion or contraction of piping.

Application

Research Laboratories.
Medical Hospitals.
Industries.
Hotels.
Process Analyzers.
Suitable for Oxygen.
Hydrogen, Ar + H2 , CO2 Gases.

Technical Data

Hydraulic Tested Pressure : 300 Bar.
Maximum Working Pressure : 240 Bar.
Temperature range : - 40 C to 60 C.
Inlet Connection : 1/4" NPT (F).
Outlet Connection : 1/4” NPT (F).
Pneumatic Tested Pressure : He Gas at 240 Bar.

Components

Inner Coil : AISI SS 316L Gr.
Single Braid : AISI SS 304 Gr.
Double Braid : AISI SS 304 Gr.
Spring : AISI SS 304 Gr.
Inlet Adopetr : AISI SS 304 Gr.
Outlet Adopter : AISI SS 304 Gr.
